features & specificatons

The retractable cord reel that’s built to last.

Arctic Leash Specifications

Shown above is the 50ft. to 80ft. case.

Shown above is the 10ft. to 40ft. case

Arctic Leash Unit Specs

CASE (HOUSING)

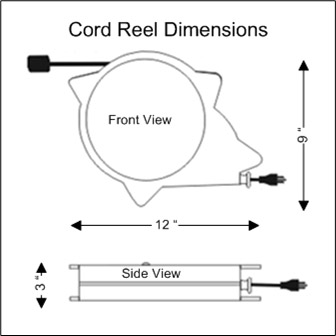

Dimensions – 9″ x 12″ x 3′
Molded Polypropylene
3.175 mm thickness
94V-0 Flammability Rating

POWER CORD

Gauge / Conductor – 12/3, 14/3, and 16/3,
Type – SJEOOW
Length – 10′ to 80′ Ft.
Rating -57 to 200 degrees F

RECEPTACLE / PLUG

Rated-125VAC/20AMP
Receptacle – NEMA 5-15P/5-20P
Plug – Dual Duplex Rated at 20 AMP

CIRCUIT BREAKER

13 AMP, 15 AMP & 20 AMP Available

Arctic Leash Unit Testing

EXTENSIVE TESTING DONE TO MEET STANDARDS

SAFETY IS OUR CONCERN

CONFORMS TO UL LISTINGS 1363-A (60601), UL 355. CSA 22.2

Arctic Leash Features

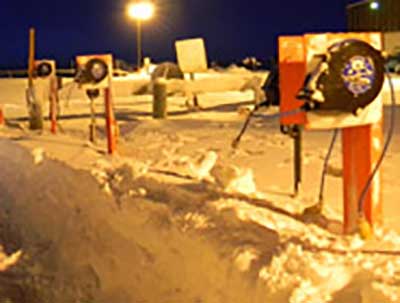

Our outdoor cord reels are built for the most extreme conditions.

  • Watertight Case
  • Internal Circuit Breaker
  • Oil/Grease & Water Resistant
  • Withstand temps from -57 to 200 F
  • Conforms to UL listings and ETL-tested
  • Indoor/outdoor Rated
  • Retracting Cord with adjustable stop

Arctic Leash installation mounting brackets

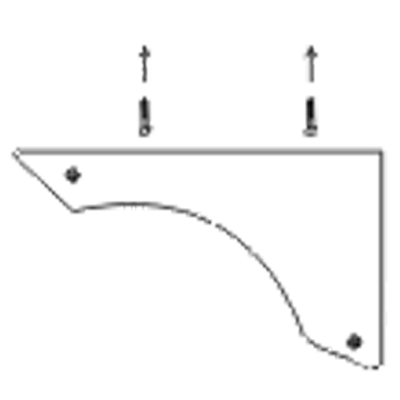

ALCB BRACKET CEILING  BRACKET

Used to mount original models. 10-40ft reels

ALP-40-2 / ALP-40-4

Pedestal...40″ Hieght with 4″x4″ Post Includes Receptacles, electrical boxes, and Hardware Supports 1 to 4 New or Original reels. Used with all Models.

ALMP MOUNTING PLATE
FOR WALL & POLE APPLICATIONS

Used to mount original models. 10-40ft reels

Download Our Cut Sheet
